DEPINGER V3 + X5 barrel centering kit for Benjamin bulldog .357

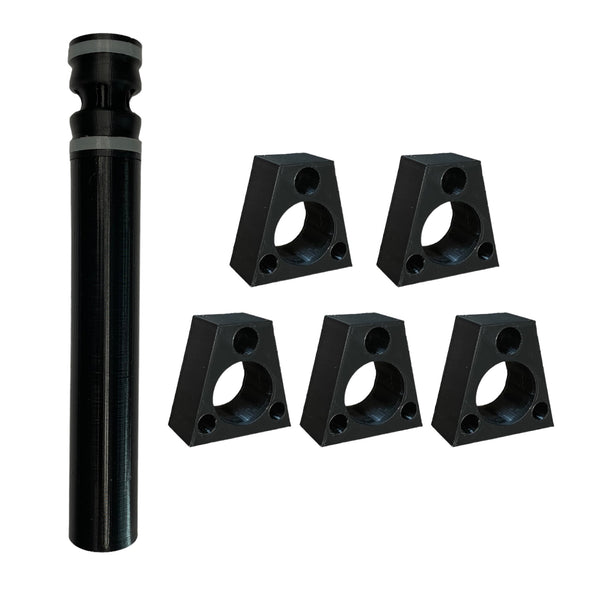

The pack includes:

• 1x Sound Enhancement Kit/Depinger MKII Kit for Benjamin Bulldog .357
• 5x Barrel centralizers

The DEPINGER MKII Kit has been specially developed to absorb vibrations when firing, eliminating the "ping" sound effect resonating in your weapon's air tank with each shot. Thus, you gain hearing comfort and discretion.

Installation of the DEPINGER kit:

• Carefully empty the entire air reserve via the bleed screw located in front of the kick connect valve. Wait 15 minutes for all the air to be evacuated.
• Dismantle the barrel protection casing by unscrewing 2 screws at the front and one at the rear on the upper side, then push it forward to reveal the barrel.
• Detach the flexible plastic butt plate from your rifle.
• Remove the left (2 screws) and right (5 screws) upper covers covering the rifle's lever/reset system.
• Remove the left (4 screws) and right (10 screws) lower covers.
• Remove the rifle system including the barrel/reservoir/trigger block, plastic covers.
• Unscrew the tank at its base, being careful not to unscrew its adapter/connector (it will be normal for the tank to be difficult to unscrew).
• Place the diabolo-shaped Depinger at the entrance to the tank tube.
• Using the cylinder, flush the Depinger inside the tank along the entire length of the cylinder.
• Remove the cylinder.
• Your Depinger is now in place.
• Optional: apply a thin strip of Teflon to the thread of the tank before assembly to ensure watertightness.
• Reassemble the rifle.

Congratulations, you have just installed your Depinger kit!

Installation of centralizers:

• For safety reasons, carefully empty the entire air reserve via the bleed screw located in front of the kick connect valve. Wait 15 minutes for all the air to be evacuated.
• Dismantle the barrel protection casing by unscrewing 2 screws at the front and one at the rear on the upper side, then push it forward to reveal the barrel.
• Detach the flexible plastic butt plate from your rifle.
• Allow approximately 15 minutes for installation.
• Drive out the star at the end of the barrel (it is normal that it comes with difficulty).
• Insert the barrel centralizer(s) along the barrel.
• Reassemble the rifle.

Congratulations, you have just installed your barrel centralizers.

An inch Allen key kit will be essential for installation
